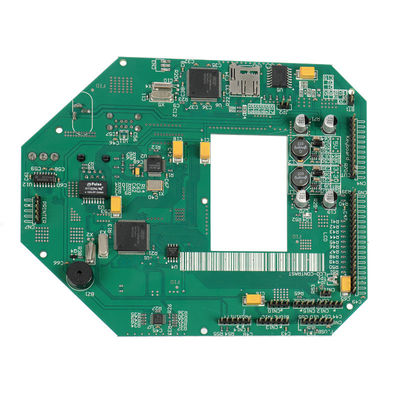

EMS Circuit Board Industrial PCB Assembly Immersion Silver SN

Place of Origin CHINA,VIETNAM,USA
Brand Name IBE
Certification IATF/TS16949,ISO13485,ISO 9001,ISO14001,UL
Model Number FG-13941265
Minimum Order Quantity no MOQ
Price Negotiable
Packaging Details ESD bag+card carton(custom made)
Delivery Time 5-10 weeks depends on components lead time
Payment Terms L/C, T/T
Supply Ability 20000pcs+unit+month
Product Details
Material FR4, FR4 CEM1 CEM3 Hight TG Layers 1-24layers, 1-28 L
Copper Thickness 1oz, 0.25 Oz -12 Oz, 1/2OZ 1OZ 2OZ 3OZ, 1-4oz, 3oz Surface Finishing HASL, ENIG, OSP, Immersion Gold, HASL Lead Free
Solder Mask Green, Green. Red. Blue. White. Black.Yellow, Blue, Purple, Yellow Type Electronic Board, PCBA Design Service
High Light

Immersion SN EMS Circuit Board Assembly

,

EMS Industrial PCB Assembly

,

Industrial PCB Assembly Immersion Silver SN

Leave a Message
Product Description

IBE has been serving the contract manufacturing (OEM/EMS) industry nearly 20 years based in China. The service includes Electronic Design , PCB Fabrication, SMT and PCB Assembly, Components Sourcing, Prototyping, Box Build, and Turnkey Solution. To expand the business and provide better services to North American customers, IBE opened a new facility IBE (USA) in Fremont,CA since 2017, which can provide a full range of PCB assembly service. Also established the facility campus in Vietnam since 2020.IBE continues to invest in new technologies, providing a complete manufacturing solution to meet customers' needs and make the process more economical. Our major products are in markets of Smart Home Appliance,Smart Metering,Medical Facility,Automotive Electronic Device,Electromobile Power Charging Electronic Device, Digital Earphone,etc.





Certification:
Certified by ISO 9001 and 14001,IBE is a well-equipped and strictly managed manufacturer.We integrate our resources and manage production through MES system which can well optimize
process and guarantee quality.Besides,IBE Group adheres strictly to the production and manufacturing standards of TS16949,automobile industry and ISO 13485,medical industry.





Production capability:



1 Material PR4,Halogen free, High TG,CEM3,PTFE,Aluminum BT,Rogers
2 Board Thickness Mass Production:0.3-3.5mm Samples:0.21-6.0mm
3 Surface Finish HASL,OSP,Immersion Silver/Gold/SN,Flash Gold, Gold Finger,Hard Gold Plating
4 PCB Panel Size Max Mass Productoin: 610x460mm Sample:762x508mm
5 Layer Mass production:2-58 Layers, Samples:1-64 Layers
6 Min. Drill Hole Size Laser Drill 0.1mm,Machine Drill 0.2mm
7 PCBA QC X-ray,AOI Test,Functional Test
8 Speciality Automotive,Medical/Gaming/Smart Device,Computer,LED/Lighting,etc
9 Sanforized Buried via, Blind via, Mixed Pressure,Embedded Resistance,Embedded Capacitance, Local Mixed Pressure, Local High Density, Back Drill, Impedance Control

EMS Circuit Board Industrial PCB Assembly Immersion Silver SN 0



EMS Circuit Board Industrial PCB Assembly Immersion Silver SN 1



EMS Circuit Board Industrial PCB Assembly Immersion Silver SN 2



FAQ:

1.How does a printed circuit board assembly (PCB assembly) work?

EMS Circuit Board Industrial PCB Assembly Immersion Silver SN 3

The primary function of a PCB assembly is to integrate the electronic components of a device into a compact or defined space. Acting as the central hub of the electronic circuit of a device, the PCB provides insulation for all other electrical components, allowing them to be safely connected to a power source.



2. What information is required for a turnkey PCB assembly order?

For turnkey projects, we’ll need the following:

Gerber file

Bill of materials (BOM)

Component placement list (CPL)

All relevant CAD and .stp file



3. Are you UL / Underwriters Laboratory approved?

IBE pursues all applicable UL certifications for our products, and we offer several products certified with UL and CSA based on customer’s demand

Underwriters Laboratories (UL) grants multiple certifications, including:

IBE is certified for PCB by UL file E326838



4. Do you offer RoHS&REACH-compliant assemblies?
Yes, IBE does offer assemblies that comply with the European Union’s Restriction of Hazardous Substances (RoHS) Directive and REACH.

5. Do you offer testing and inspection services?



Yes, IBE offers a comprehensive list of testing and inspection services for both SMT and through-hole assemblies.

Visual inspection/scanning microscopes

AOI inspection

In-circuit test

Functional testing include automated test equipment and system

Burn-in tests

Low/High Temp Chamber Testing

X-ray inspection and repair

Salt fog tester

Drop Test

packing vibration

Conformal coating and potting
