OEM Multilayer Pcb Fabrication 4mil High Density BGA PCB Assembly

Place of Origin CHINA,VIETNAM,USA
Brand Name IBE
Certification IATF/TS16949,ISO13485,ISO 9001,ISO14001,UL
Model Number IBE-136778
Minimum Order Quantity no MOQ
Price Negotiable
Packaging Details ESD bag+card carton(custom made)
Delivery Time 5-10 weeks depends on components lead time
Payment Terms L/C, T/T
Supply Ability 20000pcs+unit+month
Product Details
Material FR4/TG150~180,FR-4/CTI175~600V Board Thickness/Copper Thickness 0.8mm~2.0mm/0.5OZ~5OZ
Min Line Width & Space 3mil/3mil(0.075mm) Min Hole Size 0.01",0.15mm
Solder Mask Color Matte Black, White, Green, Red, Blue
High Light

OEM Multilayer Pcb Fabrication

,

BGA 4mil Multilayer Pcb Fabrication

,

4mil High Density BGA PCB Assembly

Leave a Message
Product Description

OEM Prototype Multilayer Printed PCB Circuit Board Manufacturer 4mil High density BGA PCB



IBE has more than 20 years of experienced professional PCB&PCBA&EMS production technology team, to provide customers with professional technical support and services to provide cost-effective products. Provide customers with technology and product solutions, and provide one-stop high-quality services for R&D, production and service. IBE has been serving the contract manufacturing (OEM/EMS) industry nearly 20 years based in China. The service includes Electronic Design , PCB Fabrication, SMT and PCB Assembly, Components Sourcing, Prototyping, Box Build, and Turnkey Solution. To expand the business and provide better services to North American customers, IBE opened a new facility IBE (USA) in Fremont,CA since 2017, which can provide a full range of PCB assembly service. Also established the facility campus in Vietnam since 2020.IBE continues to invest in new technologies, providing a complete manufacturing solution to meet customers' needs and make the process more economical. Our major products are in markets of Smart Home Appliance,Smart Metering,Medical Facility,Automotive Electronic Device,Electromobile Power Charging Electronic Device, Digital Earphone,etc.





Production capability:



1 Material PR4,Halogen free, High TG,CEM3,PTFE,Aluminum BT,Rogers
2 Board Thickness Mass Production:0.3-3.5mm Samples:0.21-6.0mm
3 Surface Finish HASL,OSP,Immersion Silver/Gold/SN,Flash Gold, Gold Finger,Hard Gold Plating
4 PCB Panel Size Max Mass Productoin: 610x460mm Sample:762x508mm
5 Layer Mass production:2-58 Layers, Samples:1-64 Layers
6 Min. Drill Hole Size Laser Drill 0.1mm,Machine Drill 0.2mm
7 PCBA QC X-ray,AOI Test,Functional Test
8 Speciality Automotive,Medical/Gaming/Smart Device,Computer,LED/Lighting,etc
9 Sanforized Buried via, Blind via, Mixed Pressure,Embedded Resistance,Embedded Capacitance, Local Mixed Pressure, Local High Density, Back Drill, Impedance Control

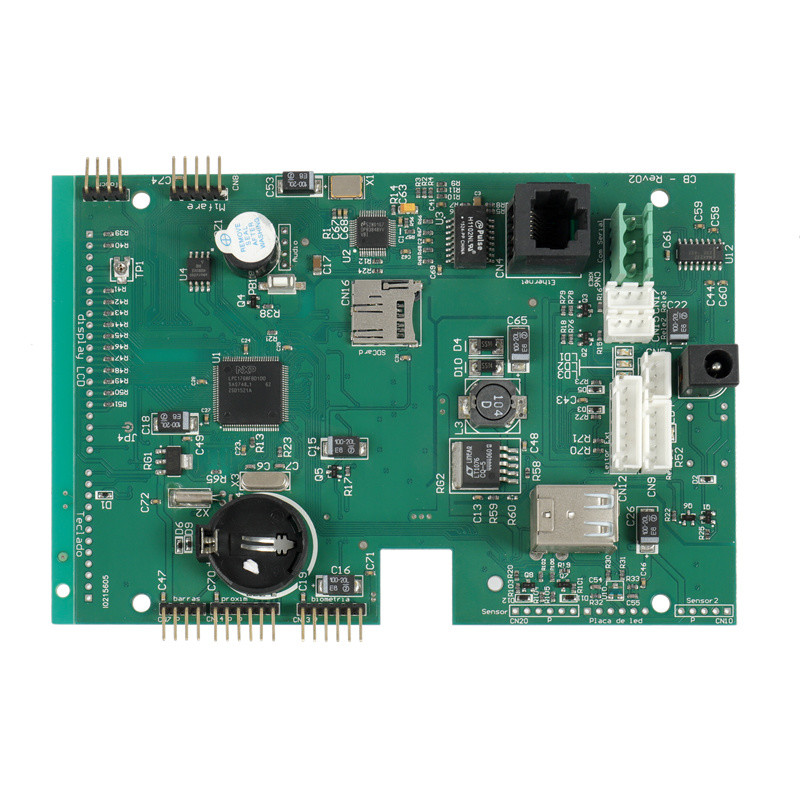

OEM Multilayer Pcb Fabrication 4mil High Density BGA PCB Assembly 0

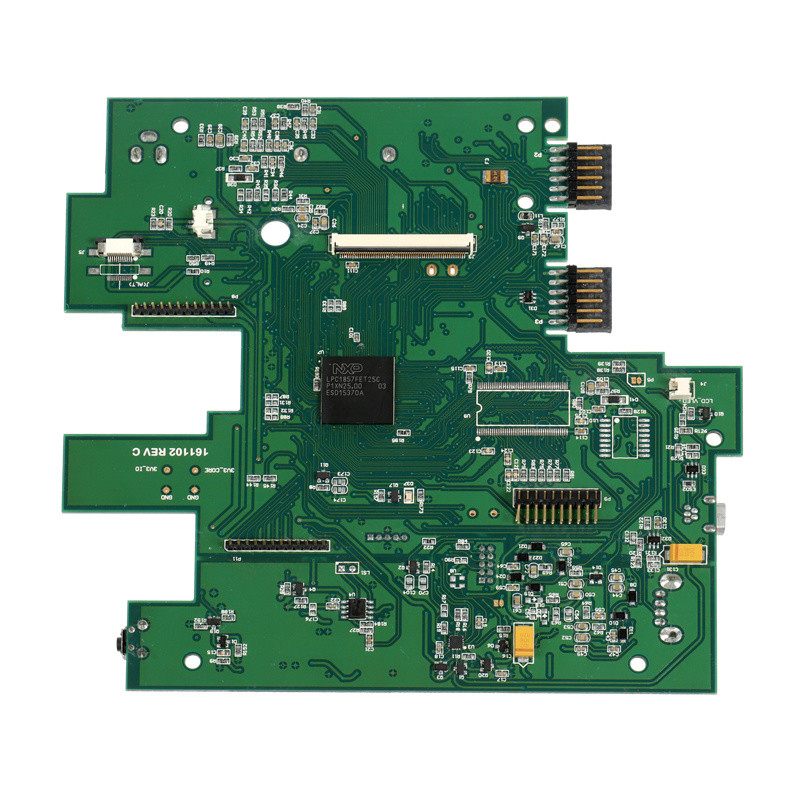

OEM Multilayer Pcb Fabrication 4mil High Density BGA PCB Assembly 1

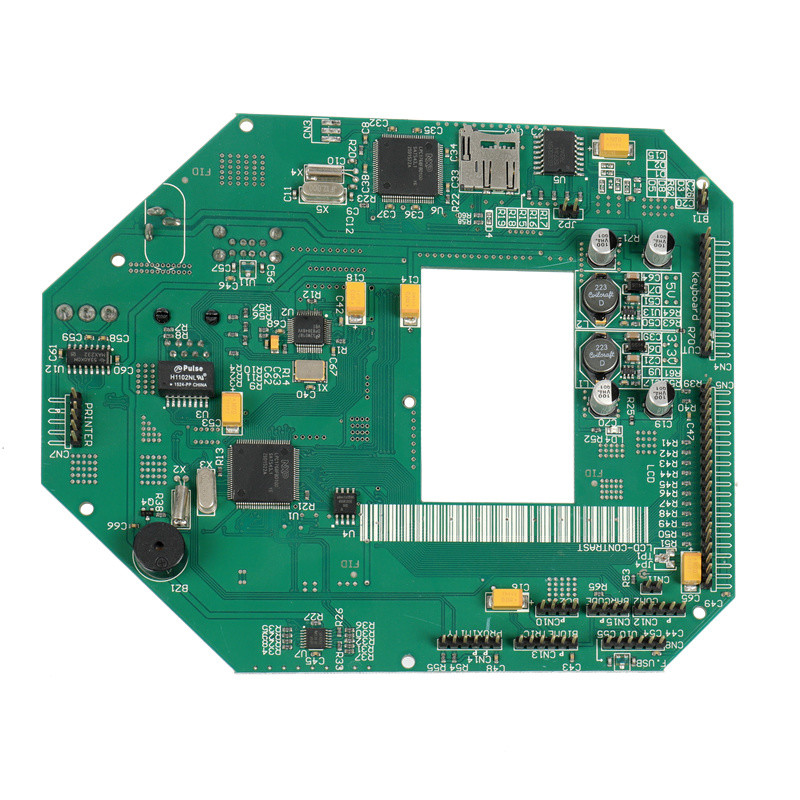

OEM Multilayer Pcb Fabrication 4mil High Density BGA PCB Assembly 2



FAQ:

1. What information is required for a turnkey PCB assembly order?

For turnkey projects, we’ll need the following:

Gerber file

Bill of materials (BOM)

Component placement list (CPL)

All relevant CAD and .stp file



2. Are you UL / Underwriters Laboratory approved?

IBE pursues all applicable UL certifications for our products, and we offer several products certified with UL and CSA based on customer’s demand

Underwriters Laboratories (UL) grants multiple certifications, including:

IBE is certified for PCB by UL file E326838



3. Do you offer RoHS&REACH-compliant assemblies?
Yes, IBE does offer assemblies that comply with the European Union’s Restriction of Hazardous Substances (RoHS) Directive and REACH.

4. Do you offer testing and inspection services?



Yes, IBE offers a comprehensive list of testing and inspection services for both SMT and through-hole assemblies.

Visual inspection/scanning microscopes

AOI inspection

In-circuit test

Functional testing include automated test equipment and system

Burn-in tests

Low/High Temp Chamber Testing

X-ray inspection and repair

Salt fog tester

Drop Test

packing vibration

Conformal coating and potting



5. What are your PCB assembly standards?

IBE has obtained the following IPC electronics industry standards for PCB assembly

IPC-A-600G for PCB production

IPC-620 for practices and requirements for cables, wire, and harness assembly manufacturing

IPC-A-610E PCBA Acceptability of Electronic Assemblies



6.Can you ship to my contract manufacturer for the final build?

Yes, we can ship your assemblies for final production. We can also offer turnkey, box build, and labor-only services



7.Where do you manufacture your products?

We have production plant based in shenzhen,China; Fremont,US,Bac Ninh,Vietnam, where to produce it depends on customer.
