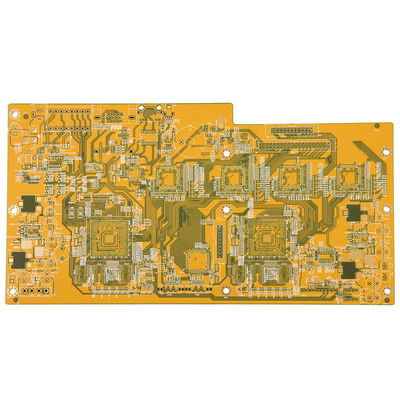

FR4 TG140 174*103mm Automotive Pcb Design Assembly Component Sourcing
| Place of Origin | CHINA,VIETNAM,USA |
|---|---|
| Brand Name | IBE |
| Certification | IATF/TS16949,ISO13485,ISO 9001,ISO14001,UL |
| Model Number | IBE-133987 |
| Minimum Order Quantity | no MOQ |
| Price | Negotiable |
| Packaging Details | ESD bag+card carton(custom made) |
| Delivery Time | 5-10 weeks depends on components lead time |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000pcs+unit+month |
Product Details
| Base Material | FR-4 TG140 | Board Thickness | 1.2mm |
|---|---|---|---|
| Surface Finishing | ENIG | Board Size | 174*103mm |
| High Light | 174*103mm automotive pcb design,FR4 TG140 Automotive Pcb Design,174*103mm fr4 pcb assembly |
||
Product Description
IBE has been serving the contract manufacturing (OEM/EMS) industry nearly 20 years based in China. We are a professional EMS/OEM company, provided one stop contract electronic manufacturing service for PCB&PCBA. The service includes Electronic Design , PCB Fabrication, SMT and PCB Assembly, Components Sourcing, Prototyping, Box Build, and Turnkey Solution. To expand the business and provide better services to North American customers, IBE opened a new facility IBE (USA) in Fremont,CA since 2017, which can provide a full range of PCB assembly service. Also established the facility campus in Vietnam since 2020.
Our Advantages:
1, Factory Area:60000㎡ Shenzhen factory; two other factories in US and Vietnam.
2, Quality Control:IPC-1-610E Standard,E-test,X-ray,AOI Test,IQC,QC,QA,100% Functional Test
3, PCB Making (Rigid, Flexible,Rigid-Flexible,Aluminium, High TG,Ceramic), Component Sourcing, SMT&DIP, Free Program & Test, OEM/ODM Serivce
4, Certifcation:ATF 16949,ISO 13485,ISO 14001,ISO9001,UL(E326838),Disney FAMA, CE,FCC,ROHS,
| 1 | Material | PR4,Halogen free, High TG,CEM3,PTFE,Aluminum BT,Rogers |
| 2 | Board Thickness | Mass Production:0.3-3.5mm Samples:0.21-6.0mm |
| 3 | Surface Finish | HASL,OSP,Immersion Silver/Gold/SN,Flash Gold, Gold Finger,Hard Gold Plating |
| 4 | PCB Panel Size | Max Mass Productoin: 610x460mm Sample:762x508mm |
| 5 | Layer | Mass production:2-58 Layers, Samples:1-64 Layers |
| 6 | Min. Drill Hole Size | Laser Drill 0.1mm,Machine Drill 0.2mm |
| 7 | PCBA QC | X-ray,AOI Test,Functional Test |
| 8 | Speciality | Automotive,Medical/Gaming/Smart Device,Computer,LED/Lighting,etc |
| 9 | Sanforized | Buried via, Blind via, Mixed Pressure,Embedded Resistance,Embedded Capacitance, Local Mixed Pressure, Local High Density, Back Drill, Impedance Control |
FAQ:
1. What’s a motherboard?
A motherboard is a printed circuit assembly(PCA) used exclusively in laptop or desktop computers. While some may refer to a PCA as a motherboard,only those found in computers are motherboards. All other printed circuit assemblies are simply PCA or PCBA.
2. Are you UL / Underwriters Laboratory approved?
IBE pursues all applicable UL certifications for our products, and we offer several products certified with UL and CSA based on customer’s demand
Underwriters Laboratories (UL) grants multiple certifications, including:
IBE is certified for PCB by UL file E326838
3. What are your PCB assembly standards?
IBE has obtained the following IPC electronics industry standards for PCB assembly
IPC-A-600G for PCB production
IPC-620 for practices and requirements for cables, wire, and harness assembly manufacturing
IPC-A-610E PCBA Acceptability of Electronic Assemblies
