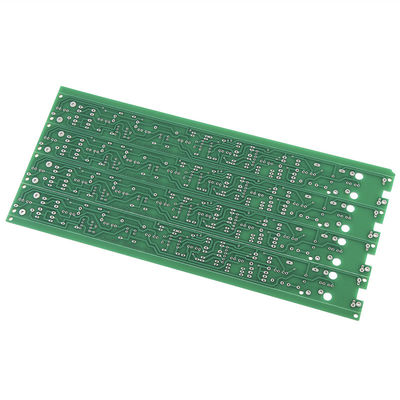

UL FDA DIP SMT PCB Assembly FR4 Tg135 Prototype PCB Manufacturing
|Place of Origin||CHINA,VIETNAM,USA|
|Minimum Order Quantity||1pc|
|Packaging Details||ESD bag+card carton(custom made)|
|Delivery Time||4-20 weeks depends on components lead time|
|Payment Terms||L/C, T/T|
|Colour||Green,yellow,white||Name||SMT PCB Assembly Rigid-flex|
|Surface Technical||ENIG||Layer Count||4|
|Material||FR4 Tg135||Max Panel Size||750mm*708mm|
|Acceptable Standard||IPC-A-600G Class II Or III||Service||One-stop Quick Turnkey Service|
UL FDA DIP SMT PCB Assembly,
FR4 Tg135 Prototype dip pcb assembly,
FR4 tg135 Prototype PCB Manufacturing
For turnkey projects, we’ll need the following:
Bill of materials (BOM)
Component placement list (CPL)
All relevant CAD and ODB++ data (later in the process)
1/ mature and stringent Quality policy
2/100% AOI, 100% ET, 100% FQC + FQA
3/SPC and Cpk programs
4/Lean Manufacturing and 6S programs
5/Advanced inspection and lab equipment
6/Standard QA report with every shipment
7/RoHS and REACH Compliance
8/Conflict Minerals Compliance
Strong supply chain management
|SMT and Through-Hole Assembly||Fine Pitch Component Insertion|
|Lead free Assembly||BGA and QFN Assembly|
|One-stop PCB Assembly||BGA X-Ray Inspection|
|Prototype PCB Assembly||Automated Optical Inspection|
|PCB Assembly in low volumes||PCB testing for functionality|
Checks for solder paste
Checks for components down to 0201"
Checks for missing components, offset, incorrect parts, polarity
X-Ray provides high-resolution inspection
In-Circuit Testing is commonly used in conjunction with AOI minimizing functional defects caused by component problems.
Advanced Function Test
Flash Device Programming
|Selective Wave Soldering||Conformal Coating|
|Complete box build||Kitting and 3D printing|
Q: What service do you have?
A: We provide PCB,components sourcing,PCB assembly,box build,R &D services.
Q: What is your minimum order quantity (MOQ)?
A:As for MOQ, we have no request about it. Even 1 pcs is ok for us.
Q: What is needed for PCB & PCBA quotation?
A: Gerber fie,Bom list and production technical requirements.
Q: How to keep our product information and design file secret ?
A: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
