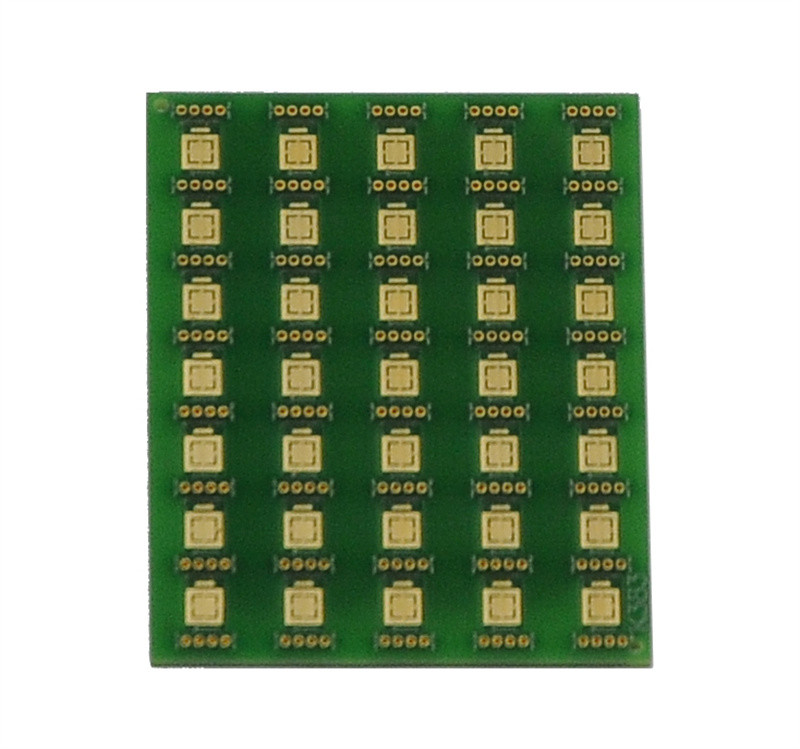

Medical Equipment 4 Layer Quick Turn PCB Assembly RoHs Reach
|Place of Origin||CHINA,VIETNAM,USA|
|Minimum Order Quantity||1pc|
|Packaging Details||ESD bag+card carton(custom made)|
|Delivery Time||4-20 weeks depends on components lead time|
|Payment Terms||L/C, T/T|
|Surface Technical||ENIG||Layer Count||4|
|Material||FR4 Tg150||Max Panel Size||750mm*708mm|
|Acceptable Standard||IPC-A-600G Class II Or III||Service||One-stop Quick Turnkey Service|
Quick Turn PCB Assembly RoHs Reach,
Medical Equipment 4 layer pcb assembly,
RoHs Reach 4 layer pcb assembly
Quick Turn for Medical Equipment One Stop PCB Assembly Service with RoHs and Reach
• Strict product liability, taking IPC-A-610 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• Automatic conformal coating machine
• In-house PCB production
• No minimum order quantity
• Focus on low to medium volume production
• Quick and on-time delivery
|SMT and Through-Hole Assembly||Fine Pitch Component Insertion|
|Lead free Assembly||BGA and QFN Assembly|
|One-stop PCB Assembly||BGA X-Ray Inspection|
|Prototype PCB Assembly||Automated Optical Inspection|
|PCB Assembly in low volumes||PCB testing for functionality|
Checks for solder paste
Checks for components down to 0201"
Checks for missing components, offset, incorrect parts, polarity
X-Ray provides high-resolution inspection
In-Circuit Testing is commonly used in conjunction with AOI minimizing functional defects caused by component problems.
Advanced Function Test
Flash Device Programming
|Selective Wave Soldering||Conformal Coating|
|Complete box build||Kitting and 3D printing|
Q: What service do you have?
A: We provide PCB,components sourcing,PCB assembly,box build,R &D services.
Q: What is your minimum order quantity (MOQ)?
A:As for MOQ, we have no request about it. Even 1 pcs is ok for us.
Q: What is needed for PCB & PCBA quotation?
A: Gerber fie,Bom list and production technical requirements.
Q: How to keep our product information and design file secret ?
A: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
