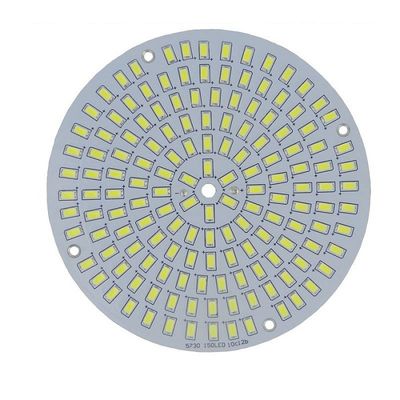

CEM-3 Thermal Conductivity Round Led Circuit Board 1 Watt
|Min. Line Width||0.075mm/0.075mm(3mil/3mil)||Surface Finishing||ENIG|
|Copper Thickness||1oz||Base Material||FR4|
|Min. Line Spacing||0.075mm||Board Thickness||1.6mm|
|Min. Hole Size||0.25mm||Soldermask Color||Green|
CEM3 1w led pcb,
Thermal Conductivity 1w led pcb,
CEM3 Round Led Circuit Board
round led pcb with 1 watt Thermal conductivity low cost LED Circuit Board factory
About IBE Corporation
Founded in 2005, IBE Corporation is a mid-size provider of end-to-end electronics manufacturing services (EMS) including PCBA production, systems integration and comprehensive testing services, enclosure fabrication, as well as product design, sustaining engineering and supply chain management services. IBE facilities span a broad footprint in the China,United States and Vietnam. IBE services extend over the entire electronic product life cycle from the development and introduction of new products through to the growth, maturity and end-of-life phases.
Certified by ISO 9001 and 14001,IBE is a well-equipped and strictly managed manufacturer.We integrate our resources and manage production through MES system which can well optimize process and guarantee quality.Besides,IBE Group adheres strictly to the production and manufacturing standards of TS16949,automobile industry and ISO 13485,medical industry.
|PCB Manufacturing Capability|
|PCB Layers:||1Layers to 18 layer (Max)|
|Min line width/space:||3mil|
|Min mechanical hole size:||4mil|
|Max aspect ratio:||1:10|
|Max board size:||400*700mm|
|Surface Finish:||HASL, immersion gold, immersion silver,immersion tin, flash gold, gold finger,peelable mask|
|Material:||FR4,High Tg, Rogers, CEM-1, CEM-3, Aluminum BT, PTFE.|
|PCB Assembly Capability|
|Stencil size range:||1560*450mm|
|Min SMT package:||0402/1005(1.0x0.5mm)|
|Min IC pitch:||0.3mm|
|Max PCB Size:||1200*400mm|
|Min PCB thickness:||0.35mm|
|Min Chip Size:||01005|
|Max BGA Size:||74*74mm|
|BGA Ball Pitch:||1.00~3.00mm|
|BGA Ball Diameter:||0.4~1.0mm|
|QFP Lead Pitch:||0.38~2.54mm|
|Testing :||ICT,AOI,X-RAY,Funtional test etc.|
Standard Delivery Date
The fastest Delivery Date
Prototype ( <20pcs)
Small Volume (20-100pcs)
Medium Volume (100-1000)
Mass Production (>1000)
Depends on BOM
Depends on BOM
1. What’s a motherboard?
A motherboard is a printed circuit assembly(PCA) used exclusively in laptop or desktop computers. While some may refer to a PCA as a motherboard,only those found in computers are motherboards. All other printed circuit assemblies are simply PCA or PCBA.
2.How does a printed circuit board assembly (PCB assembly) work?
The primary function of a PCB assembly is to integrate the electronic components of a device into a compact or defined space. Acting as the central hub of the electronic circuit of a device, the PCB provides insulation for all other electrical components, allowing them to be safely connected to a power source.
3. What information is required for a turnkey PCB assembly order?
For turnkey projects, we’ll need the following:
Bill of materials (BOM)
Component placement list (CPL)
All relevant CAD and .stp file
4. Are you UL / Underwriters Laboratory approved?
IBE pursues all applicable UL certifications for our products, and we offer several products certified with UL and CSA based on customer’s demand
Underwriters Laboratories (UL) grants multiple certifications, including:
IBE is certified for PCB by UL file E326838
5. Do you offer RoHS&REACH-compliant assemblies?
Yes, IBE does offer assemblies that comply with the European Union’s Restriction of Hazardous Substances (RoHS) Directive and REACH.
6. Do you offer testing and inspection services?
Yes, IBE offers a comprehensive list of testing and inspection services for both SMT and through-hole assemblies.
Visual inspection/scanning microscopes
Functional testing include automated test equipment and system
Low/High Temp Chamber Testing
X-ray inspection and repair
Salt fog tester
Conformal coating and potting
7. What are your PCB assembly standards?
IBE has obtained the following IPC electronics industry standards for PCB assembly
IPC-A-600G for PCB production
IPC-620 for practices and requirements for cables, wire, and harness assembly manufacturing
IPC-A-610E PCBA Acceptability of Electronic Assemblies
