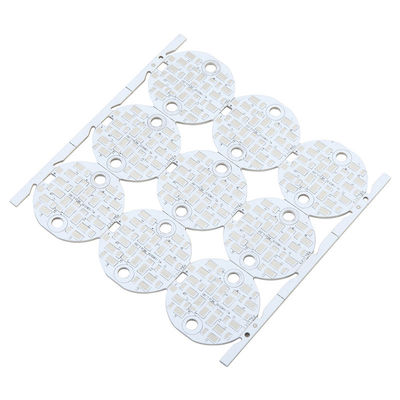

immersion gold Cem1 Multilayer Alu PCB Design DIY PCB Board Fabrication
| Place of Origin | China |
|---|---|
| Brand Name | IBE |
| Certification | ISO/TS16949 ISO13485 |
| Model Number | Alu PCB |
| Minimum Order Quantity | 10 |
| Price | $0.1-$0.5 |
| Packaging Details | ESD bag |
| Delivery Time | 5-8 working days |
| Payment Terms | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs/week |
Product Details
| Min. Line Width | 0.075mm/0.075mm(3mil/3mil) | Surface Finishing | ENIG |
|---|---|---|---|
| Copper Thickness | 1oz | Base Material | FR4 |
| Min. Line Spacing | 0.075mm | Board Thickness | 1.6mm |
| Min. Hole Size | 0.25mm | Soldermask Color | Green |
| Silkscreen Color | White | Layer | 1-32L |
| High Light | Immersion Gold multilayer pcb design,Immersion Gold Cem1 Multilayer Alu PCB,Cem1 DIY PCB Board Fabrication |
||
Product Description
Established in 2005, IBE is a highly professional and experienced PCB and PCB Assembly Manufacturer who can offer one-stop service from PCB designing, manufacturing to PCB assembling, testing and housing. With in-time delivery after more than 15 years of successful experience on the global EMS market. We have more than 500 employees, 150 with highly professional who are no less than 10 years expert in PCB&PCBA field, and PCB production capacity can reaching a monthly capability of 200000 Square meters and EMS assembling capacity at 150,000,000 components per month. Our products are widely used, Automotive, Medical, Consumer Electronics, Aerospace, Digital Communications, Industrial Control and more.
Fr4 Cem1 Alu Double Sided PCB Circuit Board Multi Layer PCB Making DIY Printed Circuit Board Assembly
PCBA Capability
The main SMT production line consists of automated high-precision state-of-the-art equipments from PanasonIC,Sumsung, Japan total 6 lines (Smallest SMT components size can reach to 0201,capable of 0.6mm*0.3mm ~ 50mm*50mmQFP, 0.15mm gap, ±0.05 accuracy ),
EMS capacity can reach 150,000,000 components per month.
Our engineering team has extensive experience in DFM/DFA/DFT technologies.
SMT, BGA Rework, Re-balling, X-Ray are all readily achieveable. Stencils can
be cut and delivered inside of 4 hours.
| PCB Manufacturing Capability | |
| PCB Layers: | 1Layers to 18 layer (Max) |
| Board thickness: | 0.13~6.0mm |
| Min line width/space: | 3mil |
| Min mechanical hole size: | 4mil |
| Copper thickness: | 9um~210um(0.25oz~6oz) |
| Max aspect ratio: | 1:10 |
| Max board size: | 400*700mm |
| Surface Finish: | HASL, immersion gold, immersion silver,immersion tin, flash gold, gold finger,peelable mask |
| Material: | FR4,High Tg, Rogers, CEM-1, CEM-3, Aluminum BT, PTFE. |
| PCB Assembly Capability | |
| Stencil size range: | 1560*450mm |
| Min SMT package: | 0402/1005(1.0x0.5mm) |
| Min IC pitch: | 0.3mm |
| Max PCB Size: | 1200*400mm |
| Min PCB thickness: | 0.35mm |
| Min Chip Size: | 01005 |
| Max BGA Size: | 74*74mm |
| BGA Ball Pitch: | 1.00~3.00mm |
| BGA Ball Diameter: | 0.4~1.0mm |
| QFP Lead Pitch: | 0.38~2.54mm |
| Testing : | ICT,AOI,X-RAY,Funtional test etc. |
FAQ:
1. What’s a motherboard?
A motherboard is a printed circuit assembly(PCA) used exclusively in laptop or desktop computers. While some may refer to a PCA as a motherboard,only those found in computers are motherboards. All other printed circuit assemblies are simply PCA or PCBA.
2.How does a printed circuit board assembly (PCB assembly) work?
The primary function of a PCB assembly is to integrate the electronic components of a device into a compact or defined space. Acting as the central hub of the electronic circuit of a device, the PCB provides insulation for all other electrical components, allowing them to be safely connected to a power source.
3. What information is required for a turnkey PCB assembly order?
For turnkey projects, we’ll need the following:
Gerber file
Bill of materials (BOM)
Component placement list (CPL)
All relevant CAD and .stp file
4. Are you UL / Underwriters Laboratory approved?
IBE pursues all applicable UL certifications for our products, and we offer several products certified with UL and CSA based on customer’s demand
Underwriters Laboratories (UL) grants multiple certifications, including:
IBE is certified for PCB by UL file E326838
5. Do you offer RoHS&REACH-compliant assemblies?
Yes, IBE does offer assemblies that comply with the European Union’s Restriction of Hazardous Substances (RoHS) Directive and REACH.
6. Do you offer testing and inspection services?
Yes, IBE offers a comprehensive list of testing and inspection services for both SMT and through-hole assemblies.
Visual inspection/scanning microscopes
AOI inspection
In-circuit test
Functional testing include automated test equipment and system
Burn-in tests
Low/High Temp Chamber Testing
X-ray inspection and repair
Salt fog tester
Drop Test
packing vibration
Conformal coating and potting
7. What are your PCB assembly standards?
IBE has obtained the following IPC electronics industry standards for PCB assembly
IPC-A-600G for PCB production
IPC-620 for practices and requirements for cables, wire, and harness assembly manufacturing
IPC-A-610E PCBA Acceptability of Electronic Assemblies
8.Can you ship to my contract manufacturer for the final build?
Yes, we can ship your assemblies for final production. We can also offer turnkey, box build, and labor-only services
