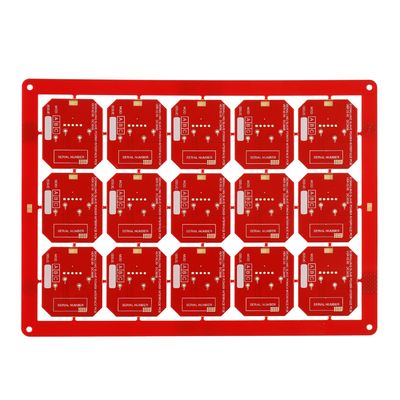

Hight TG Quick Turn PCB Prototypes Immersion Gold 2oz Copper Clad Board
| Place of Origin | CHINA,VIETNAM,USA |
|---|---|
| Brand Name | IBE |
| Certification | IATF/TS16949,ISO13485,ISO 9001,ISO14001,UL |
| Model Number | IBE-1699853 |
| Minimum Order Quantity | no MOQ |
| Price | Negotiable |
| Packaging Details | ESD bag+card carton(custom made) |
| Delivery Time | 5-10 weeks depends on components lead time |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000pcs+unit+month |
Product Details
| Material | FR4 CEM1 CEM3 Hight TG | Layers | 1-24layers, 1-28 L |
|---|---|---|---|
| Copper Thickness | 1oz, 0.25 Oz -12 Oz, 1-4oz, 3oz | Surface Finishing | HASL, ENIG, OSP, Immersion Gold, HASL Lead Free Etc. |
| Solder Mask | Purple,Green. Red. Blue. White. Black.Yellow, Blue, Purple, Yellow | Type | Electronic Board, PCBA Design Service |
| Inpendence Control Tolerance | ±10% | Testing | 100% E-Testing |
| Standards | IPC-A-610 E Class II-III | Capacity | Up To 50,000㎡/month |
| High Light | HASL Quick Turn PCB Prototypes,24 Layers Quick Turn PCB Prototypes,2oz Copper Clad Board |
||
Product Description
Description Of PCB Assembly Service
PCB Assembly Service is 4 layer it is used for security equipment application. we can accept PCB prototype,samll volum, middle and large volume. no MOQ request for new order.all of our PCB are met UL, TS 16949,ROHS, ISO etc. certification.
Specification Of PCB Assembly Service
| 1 | Layer | 1-40 layer |
| 2 | Material | FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 500mm*500mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing, Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076, NTPH:±0.05 |
| 14 | Certificate | UL, ISO9001, ISO14001, ROHS, CQC |
| 15 | Profiling Punching | Routing, V-CUT, Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
PCB Assembly(SMT) Product Capacity
| SMT Capacity | |
| SMT Item | Capacity |
| PCB Max. size | 510mm*1200mm(SMT) |
| Chip component | 0201, 0402, 0603, 0805, 1206 package |
| Min.pin space of IC | 0.1mm |
| Min. space of BGA | 0.1mm |
| Max.precision of IC assembly | ±0.01mm |
| Assembly capacity | ≥7 million piots/day |
| DIP capacity | 6 DIP production lines |
| Assembly testing | Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test) |
FCT(Functional Circuit Test) |
Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement. |
Products Application:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
8, Automotive
9, Smart Home
10, Industrial Automation
11, Medical Devices
12, New Energy
And so on
Advantage Of PCB Assembly Service
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
OEM/ODM/EMS Services For PCBA:
· PCBA, PCB Board assembly: SMT & PTH & BGA
· PCBA and enclosure design
· Components sourcing and purchasing
· Quick prototyping
· Plastic injection molding
· Metal sheet stamping
· Final assembly
· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
·
Now we have been a factory which can provide one-stop service,
from the PCB production, the components purchasing to the components assemble.
With years of experience in PCB manufacturing and PCB assembly, Jingbang provides flexible manufacturing options that adapt to cost targets, delivery requirements and fluctuating demands in volume. We cover a range of services such as:
Contact us !!!
