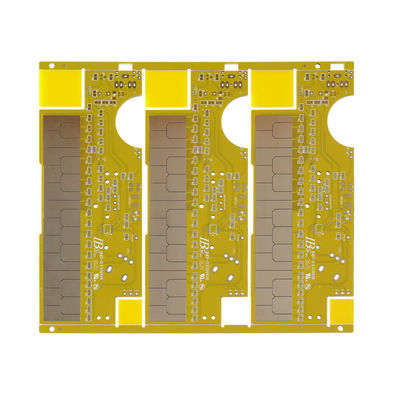

FPC 0.25oz-6oz Rigid Flexible Printed Circuit Board 16L Multilayer

Place of Origin China
Brand Name IBE
Certification ISO/TS16949 ISO13485
Model Number Flex Rigid PCB
Minimum Order Quantity 10
Price $0.1-$0.5
Packaging Details ESD bag
Delivery Time 5-8 working days
Payment Terms D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50000pcs/week
Product Details
Min. Line Width 0.075mm/0.075mm(3mil/3mil) Surface Finishing ENIG
Copper Thickness 1oz Base Material FR4
Min. Line Spacing 0.075mm Board Thickness 1.6mm
Min. Hole Size 0.25mm Soldermask Color Green
Silkscreen Color Yellow Layer 1-16L
High Light

FPC Rigid Flexible Printed Circuit Board

,

6oz Rigid Flexible Printed Circuit Board

,

6oz multilayer rigid flex pcb

Leave a Message
Product Description

China FPC, Fpcba, Flexible PCB, Flexible Circuit, Rigid-Flex PCB

PCBA Capability

The main SMT production line consists of automated high-precision state-of-the-art equipments from PanasonIC,Sumsung, Japan total 6 lines (Smallest SMT components size can reach to 0201,capable of 0.6mm*0.3mm ~ 50mm*50mmQFP, 0.15mm gap, ±0.05 accuracy ),
EMS capacity can reach 150,000,000 components per month.

Our engineering team has extensive experience in DFM/DFA/DFT technologies.
SMT, BGA Rework, Re-balling, X-Ray are all readily achieveable. Stencils can
be cut and delivered inside of 4 hours.

PCB Manufacturing Capability
PCB Layers: 1Layers to 18 layer (Max)
Board thickness: 0.13~6.0mm
Min line width/space: 3mil
Min mechanical hole size: 4mil
Copper thickness: 9um~210um(0.25oz~6oz)
Max aspect ratio: 1:10
Max board size: 400*700mm
Surface Finish: HASL, immersion gold, immersion silver,immersion tin, flash gold, gold finger,peelable mask
Material: FR4,High Tg, Rogers, CEM-1, CEM-3, Aluminum BT, PTFE.

PCB Assembly Capability
Stencil size range: 1560*450mm
Min SMT package: 0402/1005(1.0x0.5mm)
Min IC pitch: 0.3mm
Max PCB Size: 1200*400mm
Min PCB thickness: 0.35mm
Min Chip Size: 01005
Max BGA Size: 74*74mm
BGA Ball Pitch: 1.00~3.00mm
BGA Ball Diameter: 0.4~1.0mm
QFP Lead Pitch: 0.38~2.54mm
Testing : ICT,AOI,X-RAY,Funtional test etc.



Delivery Time:

Order Conditions
Standard Delivery Date
The fastest Delivery Date
Prototype ( <20pcs)
2days
8hours
Small Volume (20-100pcs)
6days
12hours
Medium Volume (100-1000)
3days
24hours
Mass Production (>1000)
Depends on BOM
Depends on BOM

FPC 0.25oz-6oz Rigid Flexible Printed Circuit Board 16L Multilayer 0


FAQ:
1. What’s a motherboard?
FPC 0.25oz-6oz Rigid Flexible Printed Circuit Board 16L Multilayer 1
A motherboard is a printed circuit assembly(PCA) used exclusively in laptop or desktop computers. While some may refer to a PCA as a motherboard,only those found in computers are motherboards. All other printed circuit assemblies are simply PCA or PCBA.
2.How does a printed circuit board assembly (PCB assembly) work?
FPC 0.25oz-6oz Rigid Flexible Printed Circuit Board 16L Multilayer 2
The primary function of a PCB assembly is to integrate the electronic components of a device into a compact or defined space. Acting as the central hub of the electronic circuit of a device, the PCB provides insulation for all other electrical components, allowing them to be safely connected to a power source.


3. What information is required for a turnkey PCB assembly order?

For turnkey projects, we’ll need the following:
Gerber file
Bill of materials (BOM)
Component placement list (CPL)
All relevant CAD and .stp file


4. Are you UL / Underwriters Laboratory approved?

IBE pursues all applicable UL certifications for our products, and we offer several products certified with UL and CSA based on customer’s demand
Underwriters Laboratories (UL) grants multiple certifications, including:
IBE is certified for PCB by UL file E326838


5. Do you offer RoHS&REACH-compliant assemblies?
Yes, IBE does offer assemblies that comply with the European Union’s Restriction of Hazardous Substances (RoHS) Directive and REACH.


6. Do you offer testing and inspection services?

Yes, IBE offers a comprehensive list of testing and inspection services for both SMT and through-hole assemblies.
Visual inspection/scanning microscopes
AOI inspection
In-circuit test
Functional testing include automated test equipment and system
Burn-in tests
Low/High Temp Chamber Testing
X-ray inspection and repair
Salt fog tester
Drop Test
packing vibration
Conformal coating and potting


7. What are your PCB assembly standards?

IBE has obtained the following IPC electronics industry standards for PCB assembly
IPC-A-600G for PCB production
IPC-620 for practices and requirements for cables, wire, and harness assembly manufacturing
IPC-A-610E PCBA Acceptability of Electronic Assemblies

8.Can you ship to my contract manufacturer for the final build?
Yes, we can ship your assemblies for final production. We can also offer turnkey, box build, and labor-only services

9.Where do you manufacture your products?
We have production plant based in shenzhen,China; Fremont,US,Bac Ninh,Vietn
