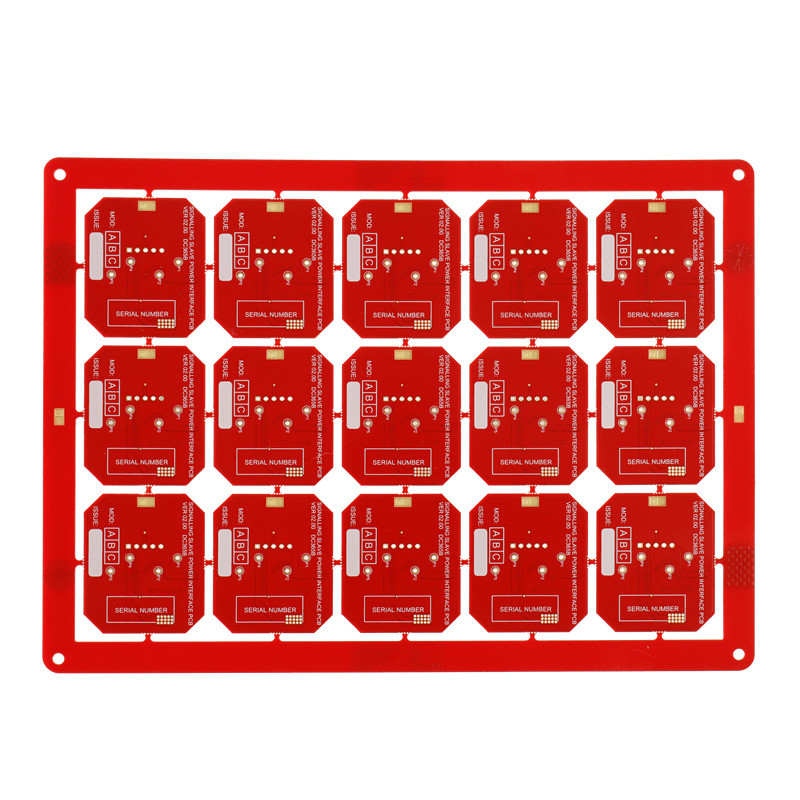

40*50mm Immersion Gold Two Layer Pcb Design Halogen Free High TG

Place of Origin Made in China
Brand Name IBE
Certification ISO 9001,ISO14001,UL
Model Number IBE-9260
Minimum Order Quantity 1pc
Price USD0.16 unit
Packaging Details Vacuum bag+humidity indicator+carton
Delivery Time 2-3 weeks
Payment Terms T/T, L/C
Supply Ability 100000sqm each month
Product Details
Material FR4 Tg150 Shengyi Colour Red,blue,black,green,yellow
Copper Thickness 2oz Acceptable Standard IPC-A-610F Class II Or III
Surface Finish ENIG Type Custom Made
Product Name Printed Circuit Board Application Bluetooth
Pcb Test Electrical Test Min.hole Size 0.1mm
Silkscreen Color White,yellow Layers 2
Size 40*50mm Special No X-out
High Light

40*50mm two layer pcb design


Halogen Free immersion gold pcb


High TG two layer pcb design

Leave a Message
Product Description

2 layers PCB Engine PCB Factory Offers multi technology of Circuit Boards for international customers



1 Material PR4,Tg150
2 Board Thickness 1.0mm+/-10%
3 Surface Finish ENIG
4 PCB Panel Size 180*210/15
5 Layer 2
6 Min. Drill Hole Size 0.1mm
7 PCB QC Electrical test and automatically hole inspection; Appearance automatic detection
8 Application wireless charger
9 Additional half hole


• 18 Years experience of electronic manufacturing services for PCB making
• More than 100 customers work with us in Aerospace, medical, industrial, communication products
• 100% inspection of all products
• RFQ within 48 hours
• Response to inquiry within 12 hours
• Exporting to Europe, North and South America, Oceania, Asia and Africa


40*50mm Immersion Gold Two Layer Pcb Design Halogen Free High TG 0



IBE provide High quality and super service to provide quick turn and mass production on rigid PCB:


Technical Capability of rigid PCB
Item Mass production Small batch production
Number of Layers UP TO 18L UP TO 36L
Laminate FR-4,Halogen free, High TG,Cem-3,Al/copper based,high frequency
Maximum board size 610*460mm 1200*600mm
Board thickness 0.3-3.5mm 0.2-6.0mm
Minimum line width/space 3/3 mil 3/3 mil
Minimum line/space tolerance +/-20% +/-10%
Max.Outer layer copper thickness 140um 210um
Max.Inner layer copper thickness 105um 175um
Min. finished hole size(Mechanical) 0.2mm 0.15mm
Min. finished hole size (laser hole) 0.075mm 0.075mm
Aspect ratio 10:1 12:1
Solder Mask Color Green, Blue, Black,White,Yellow,Red
Impedance control Tolerance <=+/-10%
Surface treatment Flash Gold 0.025-0.075um 0.025-0.5um
Immersion Gold 0.025-0.1um 0.1-0.2um
Sn/Pb Hasl 1-40um
Leadfree Hasl 1-70um
Immersion Silver 0.08-0.3um
OSP(Entek) 0.2-0.4um
Gold Finger(Hard Gold Plating ) 10u''-50u''
Other surface treatment also available such as Nickel palladium
