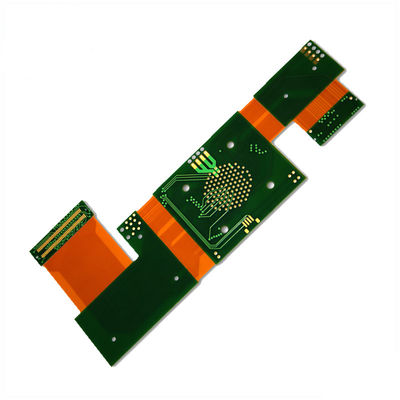

DIP High TG Flex Rigid PCB Circuit Board Quick Turn ISO13485
|Min. Line Width||0.075mm/0.075mm(3mil/3mil)||Surface Finishing||ENIG|
|Copper Thickness||1oz||Base Material||FR4|
|Min. Line Spacing||0.075mm||Board Thickness||1.6mm|
|Min. Hole Size||0.25mm||Soldermask Color||Green|
DIP High TG Flex Rigid PCB,
quick turn rigid flex pcb ISO13485,
ISO13485 rigid flex printed circuit boards
DIP Rigid Flex PCB Circuit Board For Electronics
IBE was established in 2005. We are focus on the high-quality PCBA order demand of "Multiple varieties, medium and small batch, and short delivery period". As a one-stop PCBA manufacturer, we provide the services of PCB design, PCB manufacturing, PCB assembly, DFMA service, component purchasing and test assembly.
We offer world-class circuit board assembly and electro-mechanical box build services to the medical industry.
Currently, a large percentage of IBE’ business is performed for the healthcare market – assembling everything from patient heart monitors to cancer diagnostic devices. We thoroughly understand the critical nature of the medical industry, and provide thorough documentation with traceability to all of our medical customers, ensuring the medical PCB assembly will exceed manufacturing requirements and customer satisfaction demands.
1, Factory Area:60000㎡ Shenzhen factory; two other factories in US and Vietnam.
2, Quality Control:IPC-1-610E Standard,E-test,X-ray,AOI Test,IQC,QC,QA,100% Functional Test
3, PCB Making (Rigid, Flexible,Rigid-Flexible,Aluminium, High TG,Ceramic), Component Sourcing, SMT&DIP, Free Program & Test, OEM/ODM Serivce
4, Certifcation:ATF 16949,ISO 13485,ISO 14001,ISO9001,UL(E326838),Disney FAMA, CE,FCC,ROHS,
|1||Material||PR4,Halogen free, High TG,CEM3,PTFE,Aluminum BT,Rogers|
|2||Board Thickness||Mass Production:0.3-3.5mm Samples:0.21-6.0mm|
|3||Surface Finish||HASL,OSP,Immersion Silver/Gold/SN,Flash Gold, Gold Finger,Hard Gold Plating|
|4||PCB Panel Size||Max Mass Productoin: 610x460mm Sample:762x508mm|
|5||Layer||Mass production:2-58 Layers, Samples:1-64 Layers|
|6||Min. Drill Hole Size||Laser Drill 0.1mm,Machine Drill 0.2mm|
|7||PCBA QC||X-ray,AOI Test,Functional Test|
|9||Sanforized||Buried via, Blind via, Mixed Pressure,Embedded Resistance,Embedded Capacitance, Local Mixed Pressure, Local High Density, Back Drill, Impedance Control|
Standard Delivery Date
The fastest Delivery Date
Prototype ( <20pcs)
Small Volume (20-100pcs)
Medium Volume (100-1000)
Mass Production (>1000)
Depends on BOM
Depends on BOM
1. What’s a motherboard?
A motherboard is a printed circuit assembly(PCA) used exclusively in laptop or desktop computers. While some may refer to a PCA as a motherboard,only those found in computers are motherboards. All other printed circuit assemblies are simply PCA or PCBA.
2.How does a printed circuit board assembly (PCB assembly) work?
The primary function of a PCB assembly is to integrate the electronic components of a device into a compact or defined space. Acting as the central hub of the electronic circuit of a device, the PCB provides insulation for all other electrical components, allowing them to be safely connected to a power source.
3. What information is required for a turnkey PCB assembly order?
For turnkey projects, we’ll need the following:
Bill of materials (BOM)
Component placement list (CPL)
All relevant CAD and .stp file
4. Are you UL / Underwriters Laboratory approved?
IBE pursues all applicable UL certifications for our products, and we offer several products certified with UL and CSA based on customer’s demand
Underwriters Laboratories (UL) grants multiple certifications, including:
IBE is certified for PCB by UL file E326838
5. Do you offer RoHS&REACH-compliant assemblies?
Yes, IBE does offer assemblies that comply with the European Union’s Restriction of Hazardous Substances (RoHS) Directive and REACH.
6. Do you offer testing and inspection services?
Yes, IBE offers a comprehensive list of testing and inspection services for both SMT and through-hole assemblies.
Visual inspection/scanning microscopes
Functional testing include automated test equipment and system
Low/High Temp Chamber Testing
X-ray inspection and repair
Salt fog tester
Conformal coating and potting
