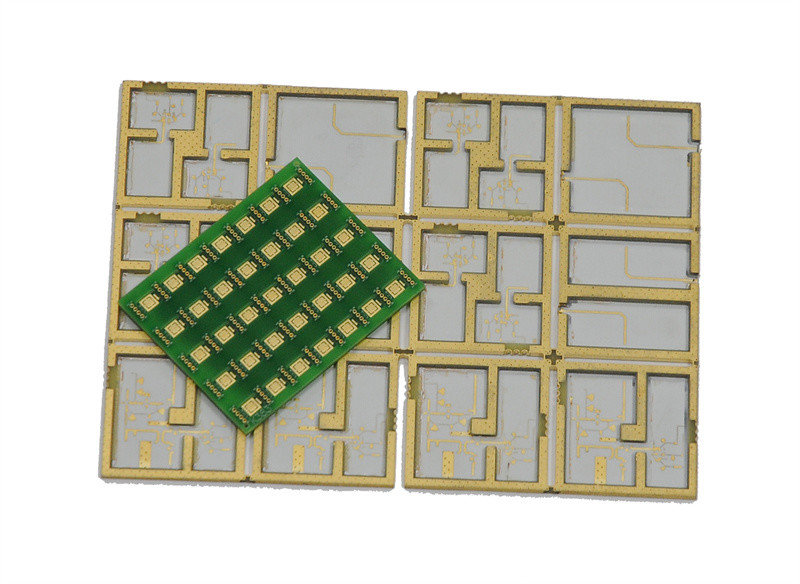

High Tg Fr4 Pi Rigid Flex Pcb Assembly 16L Aluminum Clad Pcb
| Place of Origin | China |
|---|---|
| Brand Name | IBE |
| Certification | ISO/TS16949 ISO13485 |
| Model Number | Flex Rigid PCB |
| Minimum Order Quantity | 10 |
| Price | $0.1-$0.5 |
| Packaging Details | ESD bag |
| Delivery Time | 5-8 working days |
| Payment Terms | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs/week |
Product Details
| Min. Line Width | 0.075mm/0.075mm(3mil/3mil) | Surface Finishing | ENIG |
|---|---|---|---|
| Copper Thickness | 1oz | Base Material | FR4 |
| Min. Line Spacing | 0.075mm | Board Thickness | 1.6mm |
| Min. Hole Size | 0.25mm | Soldermask Color | Green |
| Silkscreen Color | Yellow | Layer | 1-16L |
| High Light | Fr4 Pi Rigid Flex Pcb Assembly,High Tg 16L Aluminum Clad Pcb,16L Rigid Flex Pcb Assembly |
||
Product Description
rigid flex pcb design PCB High Tg Fr-4+Pi flex circuit assembly,aluminum clad pcb
Established in 2005, IBE is a highly professional and experienced PCB and PCB Assembly Manufacturer who can offer one-stop service from PCB designing, manufacturing to PCB assembling, testing and housing. With in-time delivery after more than 18 years of successful experience on the global EMS market. We have more than 500 employees, 150 with highly professional who are no less than 10 years expert in PCB&PCBA field, and PCB production capacity can reaching a monthly capability of 45000 Square meters and EMS assembling capacity at 150,000,000 components per month. Our products are widely used, Automotive, Medical, Consumer Electronics, Aerospace, Digital Communications, Industrial Control and more. High performance PCB and PCBA solutions with over 18 years, currently have over 5000 customers worldwide, we build long-term, positive relationships with our customers, based on respect, collaboration, and trust.
Our Advantages:
1, Factory Area:60000㎡ Shenzhen factory; two other factories in US and Vietnam.
2, Quality Control:IPC-1-610E Standard,E-test,X-ray,AOI Test,IQC,QC,QA,100% Functional Test
3, PCB Making (Rigid, Flexible,Rigid-Flexible,Aluminium, High TG,Ceramic), Component Sourcing, SMT&DIP, Free Program & Test, OEM/ODM Serivce
4, Certifcation:ATF 16949,ISO 13485,ISO 14001,ISO9001,UL(E326838),Disney FAMA, CE,FCC,ROHS,
| 1 | Material | PR4,Halogen free, High TG,CEM3,PTFE,Aluminum BT,Rogers |
| 2 | Board Thickness | Mass Production:0.3-3.5mm Samples:0.21-6.0mm |
| 3 | Surface Finish | HASL,OSP,Immersion Silver/Gold/SN,Flash Gold, Gold Finger,Hard Gold Plating |
| 4 | PCB Panel Size | Max Mass Productoin: 610x460mm Sample:762x508mm |
| 5 | Layer | Mass production:2-58 Layers, Samples:1-64 Layers |
| 6 | Min. Drill Hole Size | Laser Drill 0.1mm,Machine Drill 0.2mm |
| 7 | PCBA QC | X-ray,AOI Test,Functional Test |
| 8 | Speciality | Automotive,Medical/Gaming/Smart Device,Computer,LED/Lighting,etc |
| 9 | Sanforized | Buried via, Blind via, Mixed Pressure,Embedded Resistance,Embedded Capacitance, Local Mixed Pressure, Local High Density, Back Drill, Impedance Control |
Delivery Time:
|
Order Conditions
|
Standard Delivery Date
|
The fastest Delivery Date
|
|
Prototype ( <20pcs)
|
2days
|
8hours
|
|
Small Volume (20-100pcs)
|
6days
|
12hours
|
|
Medium Volume (100-1000)
|
3days
|
24hours
|
|
Mass Production (>1000)
|
Depends on BOM
|
Depends on BOM
|
FAQ:
1. What’s a motherboard?
A motherboard is a printed circuit assembly(PCA) used exclusively in laptop or desktop computers. While some may refer to a PCA as a motherboard,only those found in computers are motherboards. All other printed circuit assemblies are simply PCA or PCBA.
2.How does a printed circuit board assembly (PCB assembly) work?
The primary function of a PCB assembly is to integrate the electronic components of a device into a compact or defined space. Acting as the central hub of the electronic circuit of a device, the PCB provides insulation for all other electrical components, allowing them to be safely connected to a power source.
3. What information is required for a turnkey PCB assembly order?
For turnkey projects, we’ll need the following:
Gerber file
Bill of materials (BOM)
Component placement list (CPL)
All relevant CAD and .stp file
4. Are you UL / Underwriters Laboratory approved?
IBE pursues all applicable UL certifications for our products, and we offer several products certified with UL and CSA based on customer’s demand
Underwriters Laboratories (UL) grants multiple certifications, including:
IBE is certified for PCB by UL file E326838
